Function prototypes for HW control. More...

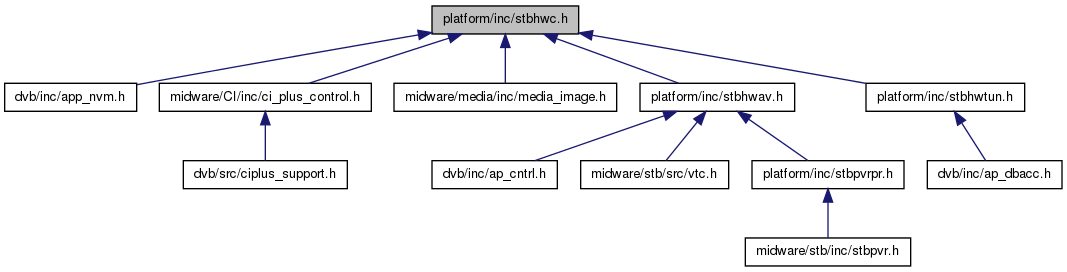

This graph shows which files directly or indirectly include this file:

Typedefs
typedef enum e_hw_status	E_HW_STATUS
Enumerations
enum	E_STB_SP_HANDSHAKING { HANDSHAKING_NONE, HANDSHAKING_XONXOFF, HANDSHAKING_RTSCTS }
enum	e_hw_status { HW_OK = 0, HW_GEN_ERROR, HW_BAD_PARAM, HW_NO_MEMORY }
Functions
void	STB_SPWrite (U8BIT data, U32BIT len, U32BIT timeout, U32BIT written)
void	STB_SPRead (U8BIT data, U32BIT len, U32BIT timeout, U32BIT read)
void	STB_SPDebugWrite (const char *format,...)
	Write debug string to serial/debug port. <CR><LF> characters will be automatically added to the end of the string.
void	STB_SPDebugNoCnWrite (const char *format,...)
	Writes debug string to the serial port without <CR><LF>
void	STB_SPDebugAssertFail (const char file, int line, const char eval_str)
	Report Assertion failure.
U8BIT	STB_HWGetTunerPaths (void)
	Returns the number of front end (Tuner) paths on the platform.
U8BIT	STB_HWGetNumRecorders (void)
	Returns the number of recordings that can take place at the same time.
U8BIT	STB_HWGetAudioDecodePaths (void)
	Returns the number of audio decoding paths on the platform.
U8BIT	STB_HWGetVideoDecodePaths (void)
	Returns the number of video decoding paths on the platform.
U8BIT	STB_HWGetDemuxPaths (void)
	Queries the number of demux paths available.
U8BIT	STB_HWGetNumCISlots (void)
	Returns the serial number of the Set Top Box.
U8BIT	STB_HWGetNumSCSlots (void)
	Returns the number of CI slots on the platorm.
U8BIT *	STB_HWGetOUI (void)
	Returns the number of smart card slots on the platorm.
U16BIT	STB_HWGetHwId (void)
	Returns the platform hardware identifier code.
U16BIT	STB_HWGetCustomerId (void)
	Returns the platform customer identifier code.
U32BIT	STB_HWGetBoxSerialNumber (void)
	Returns the serial number of the Set Top Box.
BOOLEAN	STB_GetSqlFileName (U8BIT *pathname, U16BIT max_pathname_len)
	Gives the name (optionally including path) of the SQL database file.
void	STB_HWInitialiseVBI (void)
void	STB_HWVBIInsert (U8BIT *pes_data_field, U32BIT num_bytes)

Detailed Description

Function prototypes for HW control.

Date:: 26/09/2000

Function Documentation

BOOLEAN STB_GetSqlFileName	(	U8BIT *	pathname,
		U16BIT	max_pathname_len
	)

Gives the name (optionally including path) of the SQL database file.

Parameters:

pathname	- array into which the full path will be written
max_pathname_len	- size of the pathname array

Returns:: TRUE if the pathname is returned successfully.

U8BIT STB_HWGetAudioDecodePaths ( void )

Returns the number of audio decoding paths on the platform.

Returns:: The number of audio decode paths

U32BIT STB_HWGetBoxSerialNumber ( void )

Returns the serial number of the Set Top Box.

Returns:: The serial number

U16BIT STB_HWGetCustomerId ( void )

Returns the platform customer identifier code.

Returns:: The platform id

U8BIT STB_HWGetDemuxPaths ( void )

Queries the number of demux paths available.

Returns:: The number of demux paths

U16BIT STB_HWGetHwId ( void )

Returns the platform hardware identifier code.

Returns:: The platform id

U8BIT STB_HWGetNumCISlots ( void )

Returns the serial number of the Set Top Box.

Returns:: The serial number

U8BIT STB_HWGetNumRecorders ( void )

Returns the number of recordings that can take place at the same time.

Returns:: The number of recordings

U8BIT STB_HWGetNumSCSlots ( void )

Returns the number of CI slots on the platorm.

Returns:: The number of CI slots

U8BIT* STB_HWGetOUI ( void )

Returns the number of smart card slots on the platorm.

Returns:: The number of smart card slots

U8BIT STB_HWGetTunerPaths ( void )

Returns the number of front end (Tuner) paths on the platform.

Returns:: The number of tuner paths

U8BIT STB_HWGetVideoDecodePaths ( void )

Returns the number of video decoding paths on the platform.

Returns:: The number of video decode paths

void STB_SPDebugAssertFail	(	const char *	file,
		int	line,
		const char *	eval_str
	)

Report Assertion failure.

Parameters:

file	name of source file
line	line number of source file
eval_str	evaluation string that failed

void STB_SPDebugNoCnWrite	(	const char *	format,
			...
	)

Writes debug string to the serial port without <CR><LF>

Parameters:

format string & format

void STB_SPDebugWrite	(	const char *	format,
			...
	)

Write debug string to serial/debug port. <CR><LF> characters will be automatically added to the end of the string.

Parameters:

format string & format
