Header file - macros and function prototypes for public use. More...

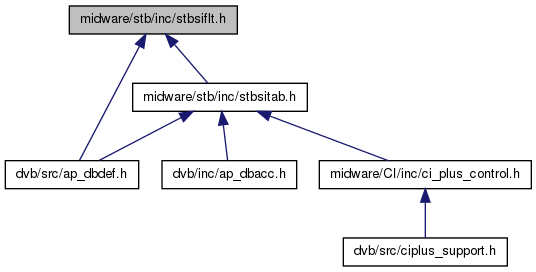

This graph shows which files directly or indirectly include this file:

Data Structures
struct	si_section_record
struct	si_table_record
Defines
#define	SI_BUFFER_1K 1024
#define	SI_BUFFER_2K 2048
#define	SI_BUFFER_4K 4096
#define	SI_BUFFER_8K 8192
#define	SI_BUFFER_16K 16384
#define	SI_BUFFER_32K 32768
#define	SI_BUFFER_64K 65535
#define	SI_XTID_MATCH_DONT_CARE 0x0000
#define	SI_XTID_MASK_DONT_CARE 0x0000
Typedefs
typedef struct si_section_record	SI_SECTION_RECORD
typedef struct si_table_record	SI_TABLE_RECORD
typedef void(*	F_AppSiEventHandler )(U8BIT, E_APP_SI_EVENT_TYPE)
Enumerations
enum	E_APP_SI_EVENT_TYPE { STOP_SI, START_SI_SEARCHING, START_SI_UPDATING_NEW_TRANSPORT, START_SI_UPDATING_SAME_TRANSPORT, SI_TIMEOUT }
enum	E_SI_REQUEST_TYPE { ONE_SHOT_REQUEST, CONTINUOUS_REQUEST }
enum	E_SI_TABLE_FORMAT_TYPE { SINGLE_SECT, MULTI_SECT }
Functions
void	STB_SIReportCurrentPmt (U16BIT service_id, SI_TABLE_RECORD *table_rec, BOOLEAN new_serv, BOOLEAN new_pmt_version)
F_AppSiEventHandler	STB_SIRegisterAppSiEventHandler (F_AppSiEventHandler func_ptr)
	Registers a function to be called to handle SI events. The currently registered event handler is returned, which allows a module to override the existing function and reset it.
void *	STB_SIRequestTable (U8BIT path, U16BIT pid, U8BIT tid_match, U8BIT tid_mask, E_SI_TABLE_FORMAT_TYPE format, U16BIT expected_tables, U16BIT xtid_match, U16BIT xtid_mask, E_SI_REQUEST_TYPE req_type, U16BIT buff_size, BOOLEAN crc, BOOLEAN low_priority, void(callback)(void , U32BIT, SI_TABLE_RECORD *), U32BIT ret_param)
void	STB_SIModifyTableRequest (void *filter_handle, U8BIT tid_match, U8BIT tid_mask, U16BIT xtid_match, U16BIT xtid_mask, U16BIT expected_tables)
void	STB_SIRestartTableRequest (void *filter_handle)
void	STB_SICancelTableRequest (void *filter_ptr)
void	STB_SIReleaseTableRecord (SI_TABLE_RECORD *table_rec)
void	STB_SISearchComplete (U8BIT path, BOOLEAN success, void *event_data, U32BIT data_size)
BOOLEAN	STB_SIReportCat (SI_TABLE_RECORD *table_rec)
	Reports the CAT has been received so it can be passed on to other modules.
BOOLEAN	STB_SIReportBat (SI_TABLE_RECORD *table_rec)
	Reports the BAT has been received so it can be passed on to other modules.
BOOLEAN	STB_SIReportNit (SI_TABLE_RECORD *table_rec)
	Reports the NIT has been received so it can be passed on to other modules.

Detailed Description

Header file - macros and function prototypes for public use.

Date:: 06/03/2003

Function Documentation

F_AppSiEventHandler STB_SIRegisterAppSiEventHandler ( F_AppSiEventHandler func_ptr )

Registers a function to be called to handle SI events. The currently registered event handler is returned, which allows a module to override the existing function and reset it.

Parameters:

func_ptr function being registered to handle SI events

Returns:: previously registered function

BOOLEAN STB_SIReportBat ( SI_TABLE_RECORD * table_rec )

Reports the BAT has been received so it can be passed on to other modules.

Parameters:

table_rec - table record containing the BAT section data

Returns:: TRUE if the BAT is passed to the CA module, FALSE otherwise

BOOLEAN STB_SIReportCat ( SI_TABLE_RECORD * table_rec )

Reports the CAT has been received so it can be passed on to other modules.

Parameters:

table_rec - table record containing the CAT section data

Returns:: TRUE if the CAT is passed to the CA module, FALSE otherwise

BOOLEAN STB_SIReportNit ( SI_TABLE_RECORD * table_rec )

Reports the NIT has been received so it can be passed on to other modules.

Parameters:

table_rec - table record containing the NIT section data

Returns:: TRUE if the NIT is passed to the CA module, FALSE otherwise
